spiral ribbon mixer
 |
Introduction: Spiral ribbon mixer is mainly used for mixing sticky or cohesive micro-powder and pasty material or material that adds liquid in it. It is suitable for big capacity production. Usage: The application of spiral ribbon blender is very widely, it can mix both powder with power and powder with liquid, especially can mix pasty or large gravity material (for example, lacquer putty, stone paint, metal powder etc.). It is widely used in pesticides, veterinary drugs, food, chemical, biological, breeding, ceramics, refractory materials, plastics, compound fertilizer, etc industries. |
Characteristics:

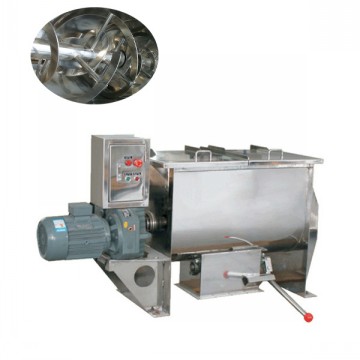

- It is made of U type container, spiral ribbon agitating vane and drive disk assembly.
- It is a new type blender with the advantage of high mix speed, high efficiency, high uniformity, high loading coefficient, low power consumption, low pollution and low broken.
Specification:
| Model | YLD-0.1 | YLD-0.3 | YLD-0.5 | YLD-1 | YLD-1.5 | YLD-2 | YLD-3 | YLD-4 | YLD-6 | YLD-8 | YLD-10 |
| First time mix (kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Power (KW) | 1.5-4 | 3-5.5 | 4-11 | 7.5-10 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight(kg) | 300 | 500 | 900 | 1400 | 1900 | 2500 | 3100 | 3600 | 5300 | 6800 | 7800 |
